YY06 Chengjia Screened Encoder SERVO Cable Shieled flexible data transmission cable TRVVSP Data Guide Encoder Cables

Low -speed Shieled flexible data transmission cable TRVVSP have a long life and cost -effective. The PVC material makes it wear -resistant and stable, suitable for indoor. Flexible data transmission PVC cables can transmit analog digital signals in devices with control processors, or use the connection cable between the instrument and the control device to be applied to the uninterrupted transmission transmission.
The shielding layer adopts a double -layer shield of tin -plated copper+aluminum foil to reduce oxidation; low -speed sports cable coverage rate reaches 75%, reducing interference during use

EMAIL

YY06 Chengjia Screened Encoder SERVO Cable Shieled flexible data transmission cable TRVVSP Data Guide Encoder Cables

Low -speed Shieled flexible data transmission cable TRVVSP have a long life and cost -effective. The PVC material makes it wear -resistant and stable, suitable for indoor. Flexible data transmission PVC cables can transmit analog digital signals in devices with control processors, or use the connection cable between the instrument and the control device to be applied to the uninterrupted transmission transmission.

The shielding layer adopts a double -layer shield of tin -plated copper+aluminum foil to reduce oxidation; low -speed sports cable coverage rate reaches 75%, reducing interference during use

Screened Encoder SERVO Cable Technical Parameter

Standard

Comply with UL20276 standard, thin wire diameter design

Conductor

adopts high-quality tinned copper stranded copper wire

Insulation material

Modified PVC

Core structure

Small pitch single stranding

Core recognition

Below 0.5m㎡ is marked with colored core wires; 0.5m㎡ above, a yellow-green ground wire + black core wire with white numbers

Outer sheath

Modified PVC mate

Color

black (other colors can be customized)

Bending radius

Move in  is more than 7.5 x d,

Fixed laying is more than 6 x d,

Nominal voltage

Uo/U 300/300 V

Test voltage

1500 V

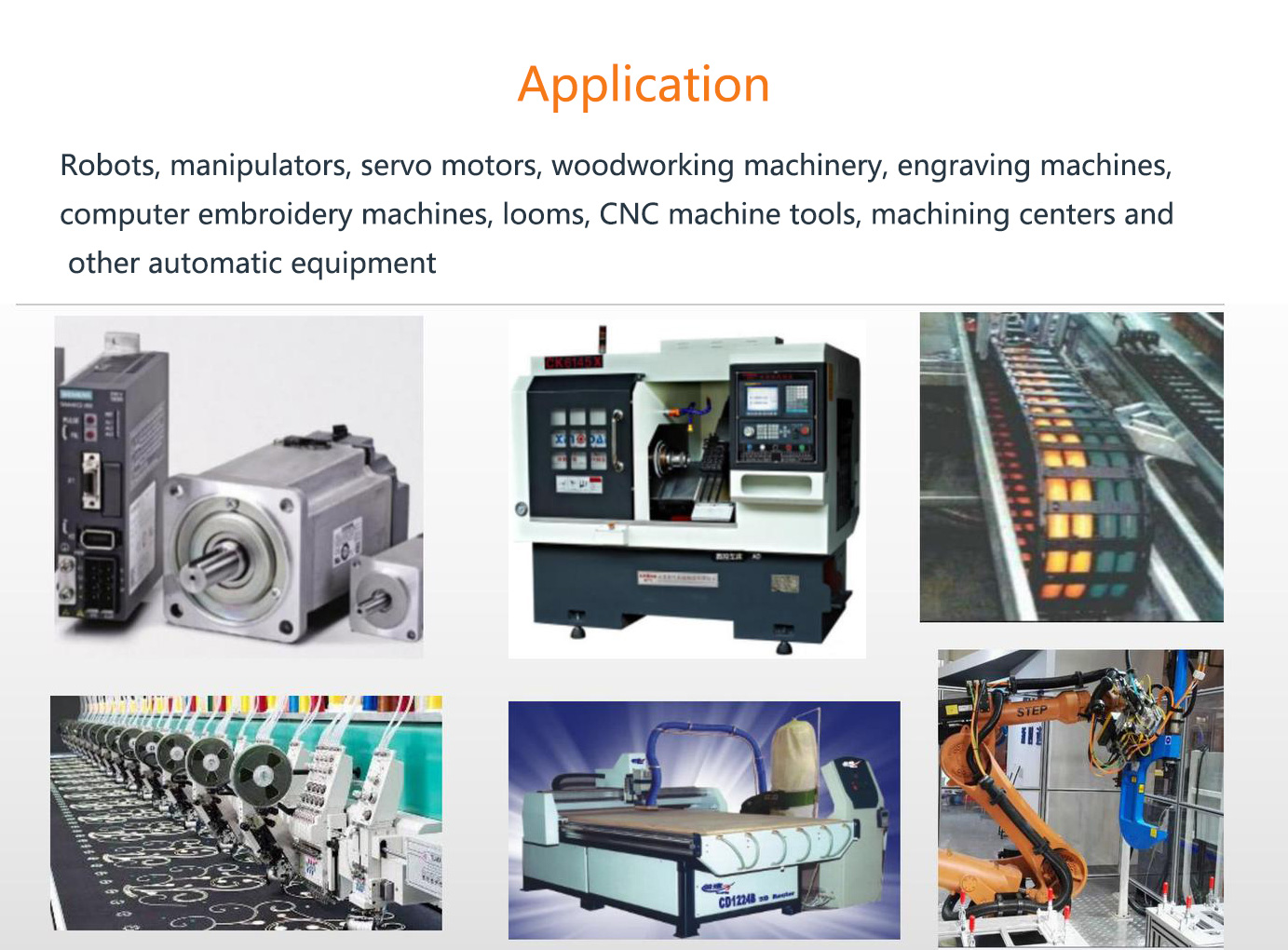

Application:

It is especially suitable for fixed installation of mechanical equipment and machine tools or occasional mobile applications. The flexible cable uses specially modified insulation and sheath materials, has abrasion resistance and medium resistance, and has more than one million periodic bends, and always maintains stability.

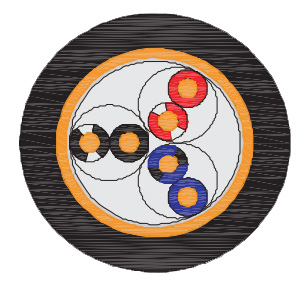

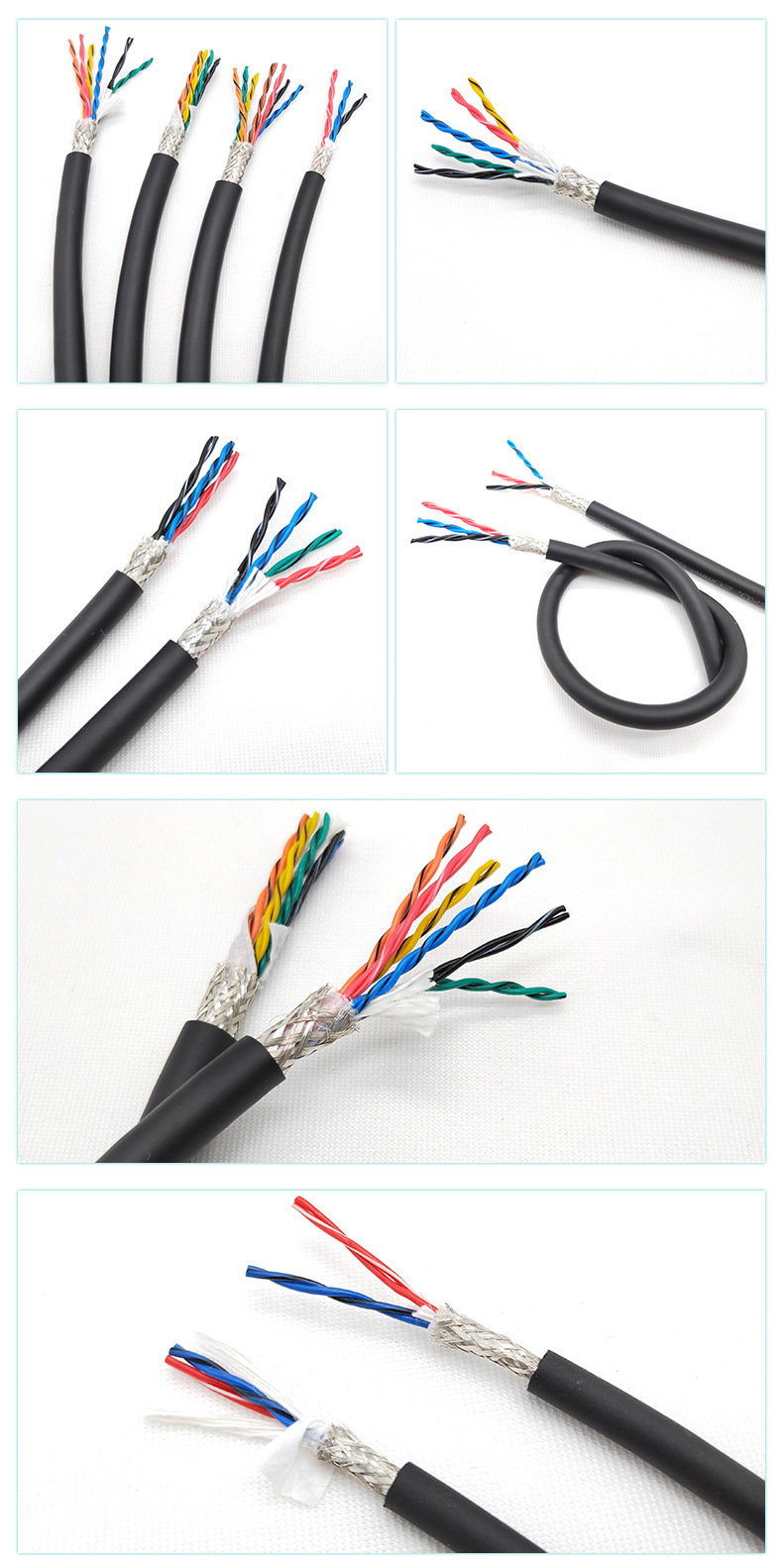

Encoder SERVO Cable Structure

1. Tinned copper (less than 0.5m㎡) or bare copper (0.5m㎡ and above) conductor thin copper wire, in line with DIN VDE0295 category 6 and IEC 60228 category 6

2. Special PVC insulation

3. Color core wire identification (less than 0.5m㎡)

4. Black core wire with continuous white digital code (0.5m㎡ and above)

5. The wire core is stranded in layers with the best pitch

6. Improved tinned copper wire braided shield

7. The minimum comprehensive shielding rate is 75%

8. Special PVC outer sheath9. Black (RAL 9005) matte

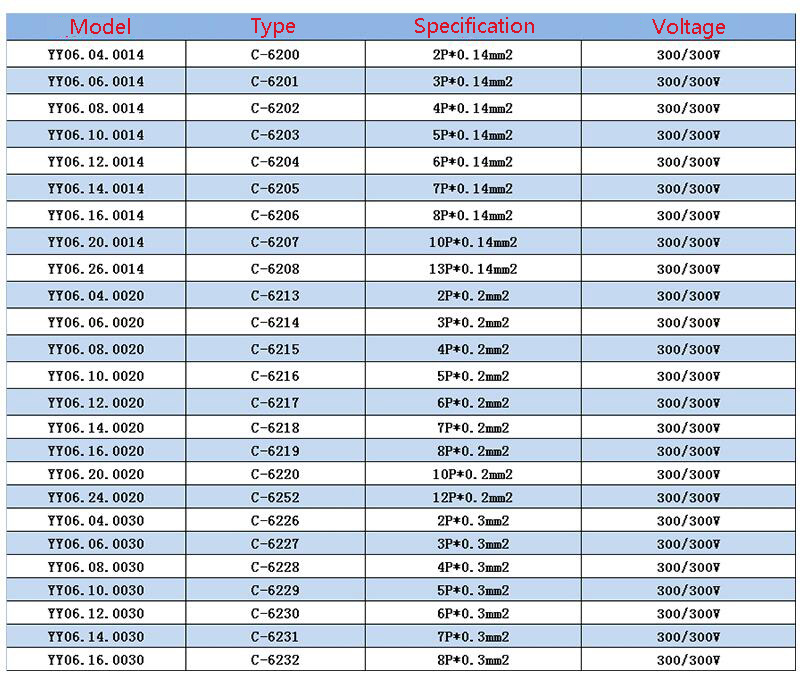

No.

Product Code

Cores Number and cross-sectional area

(NO.Xm㎡)

Approximate outer diameter (mm)

Outer sheath color

20℃  Conductor DC resistance

Ω/km

1

YY06.04.0014

2x2x0.14

5.5

Black

150

2

YY06.06.0014

3x2x0.14

5.6

Black

150

3

YY06.08.0014

4x2x0.14

6.2

Black

150

4

YY06.10.0014

5x2x0.14

6.8

Black

150

5

YY06.12.0014

6x2x0.14

7.0

Black

150

6

YY06.14.0014

7x2x0.14

7.5

Black

150

7

YY06.16.0014

8x2x0.14

7.8

Black

150

8

YY06.20.0014

10x2x0.14

8.5

Black

150

9

YY06.26.0014

13x2x0.14

9.3

Black

150

10

YY06.04.0020

2x2x0.2

5.6

Black

95

11

YY06.06.0020

3x2x0.2

6.0

Black

95

12

YY06.08.0020

4x2x0.2

6.8

Black

95

13

YY06.10.0020

5x2x0.2

7.2

Black

95

14

YY06.12.0020

6x2x0.2

7.6

Black

95

15

YY06.14.0020

7x2x0.2

8.0

Black

95

16

YY06.16.0020

8x2x0.2

8.5

Black

95

17

YY06.20.0020

10x2x0.2

9.2

Black

95

18

YY06.04.0030

2x2x0.3

6.2

Black

71.2

19

YY06.06.0030

3x2x0.3

6.6

Black

71.2

20

YY06.08.0030

4x2x0.3

7.3

Black

71.2

21

YY06.10.0030

5x2x0.3

7.8

Black

71.2

MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters
