YY01 RVV flexible drag chain PVC flexible singal control cable Robotic bending Flexible PVC/PUR/TUP multi -core cable

YY01 RVV flexible drag chain PVC flexible singal control cable Robotic bending Flexible PVC/PUR/TUP multi -core cable

Low -speed drag chain PVC flexible singal control cable are mainly used as control and power transmission systems, which are widely used in sensing technology, computer and equipment control equipment and control engineering; three cores and three cores have green/yellow protection grounding wires, and core wires are coated into cables into cables The twisted pitch is short.

The color of the outer cover is: black, you can choose other colors as needed.

In the case of standard installation and use, the service life can reach more than 2 million times.

The color of the outer cover is: black, you can choose other colors as needed.

flexible cable (4).jpg

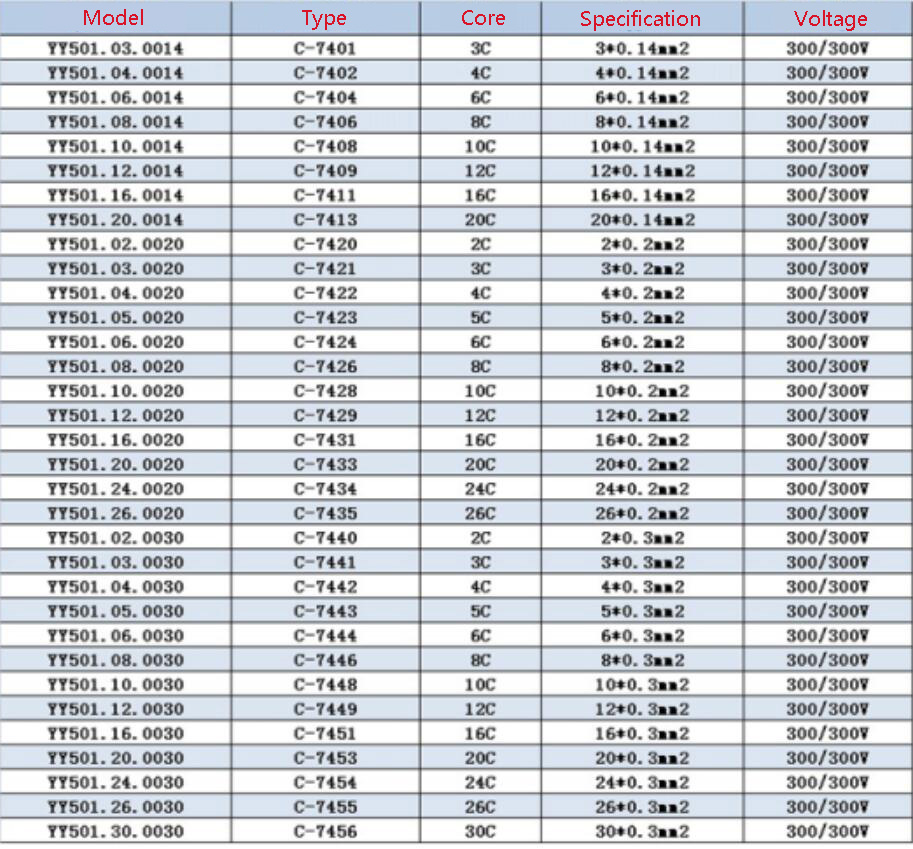

Drag chain PVC flexible singal control cable Technical Parameter

Standard		Comply with UL20276 standard, thin wire diameter design
Conductor		adopts high-quality tinned copper stranded copper wire
Insulation material		Modified PVC
Core structure		Small pitch single stranding
Core recognition		Below 0.5m㎡ is marked with colored core wires; 0.5m㎡ above, a yellow-green ground wire + black core wire with white numbers
Outer sheath		Modified PVC mate
Color		black (other colors can be customized)
Bending radius		Move in drag chain is more than 7.5 x d, non-tow chain is moved more than 6 x d, fixed laying is more than 5 x d
Movement speed:		fixed or low-speed movement, less than 0.3 m/s
Travel distance		Fixedly laid, less than 30 meters, and the signal is attenuated if it is too long.
Nominal voltage		Uo/U 300/300 V
Test voltage		1500 V
Application:		Suitable for various non-standard automated production equipment such as CNC machine tools, industrial robots, servo drives, woodworking machinery, mask machines, manipulators, dispensing machines, laser equipment, stamping lines, logistics automation, ceramic production equipment, etc., which can withstand long-term acceleration, Deceleration, tensile and compressive stress, and high-speed periodic bending, and always maintain high stability.

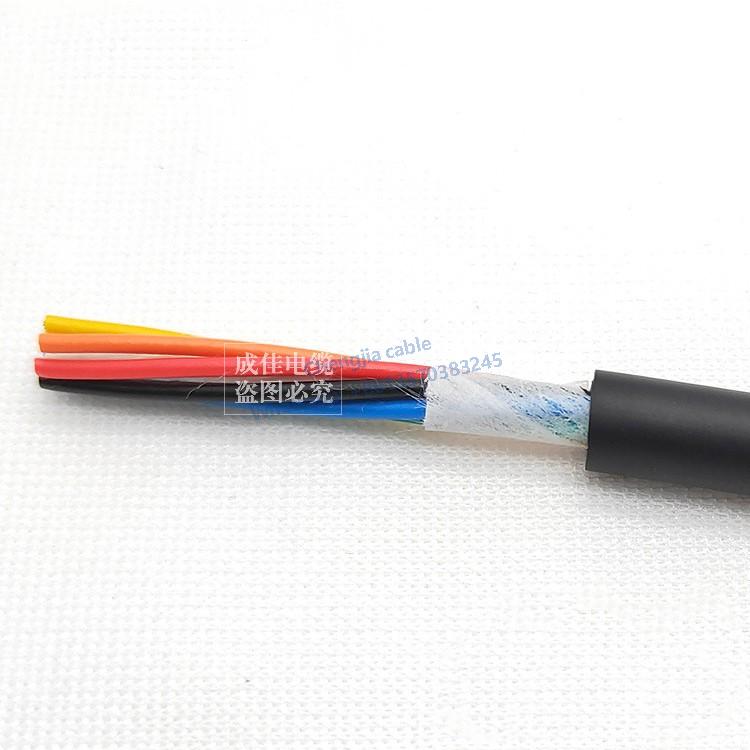

Cable Structure

drag chain PVC flexible singal control cable Structure

1. Tinned copper conductor, thin copper wire

2. Comply with DINVDE 0295 category 6 and IEC 60228 category 6

3. Special PVC insulation

4. Color core wire identification

5. The wire core is stranded in layers with the best pitch

6. Special PVC outer sheath

7. Black (RAL 9005) matte

Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions. Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
