YY506 TRVVPS servo cable data transmission cables 26/24/22AWG 2/4/6/8 Cores Twist high flexibility industrial track cables

TRVVPS servo cable Medium and high -speed sports data transmission PVC cables can transmit analog and digital signals in devices with control processors, or as connecting cables between instruments and control devices. The distance between the section can reduce the interference between the outer core cable.

EMAIL

YY506 TRVVPS servo cable data transmission cables 26/24/22AWG 2/4/6/8 Cores Twist high flexibility industrial track cables

5 million times medium and high -speed sports data transmission TRVVPS servo cable industrial track cables can transmit analog and digital signals in devices with control processors, or as connecting cables between instruments and control devices. The distance between the section can reduce the interference between the outer core cable.


Temperature range:Mobile installation: -5 ℃ to+70 ℃

                                 Fixed installation: -15 ℃ to+80 ℃

Minimum bending radius:Mobile installation 7.5 × cable diameter

                                            Fixed installation 6 × cable diameter

Used for the use of the drag chain system:5 million cycles or above

Standard Voltage:UO/U 300/300V

Product Feature

Technical Parameter

Standard

Comply with UL20276 standard, thin wire diameter design

Conductor

adopts high-quality tinned copper stranded copper wire

Insulation material

Modified PVC

Core structure

Small pitch single stranding

Core recognition

Below 0.5m㎡ is marked with colored core wires; 0.5m㎡ above, a yellow-green ground wire + black core wire with white numbers

Outer sheath

Modified PVC mate

Color

black (other colors can be customized)

Bending radius

Move in  is more than 7.5 x d,

Fixed laying is more than 6 x d,

Nominal voltage

Uo/U 300/300 V

Test voltage

1500 V

Application:

Widely used in machinery, instruments, industrial electronic equipment computers, information transmission systems, suitable for any two-way communication occasions

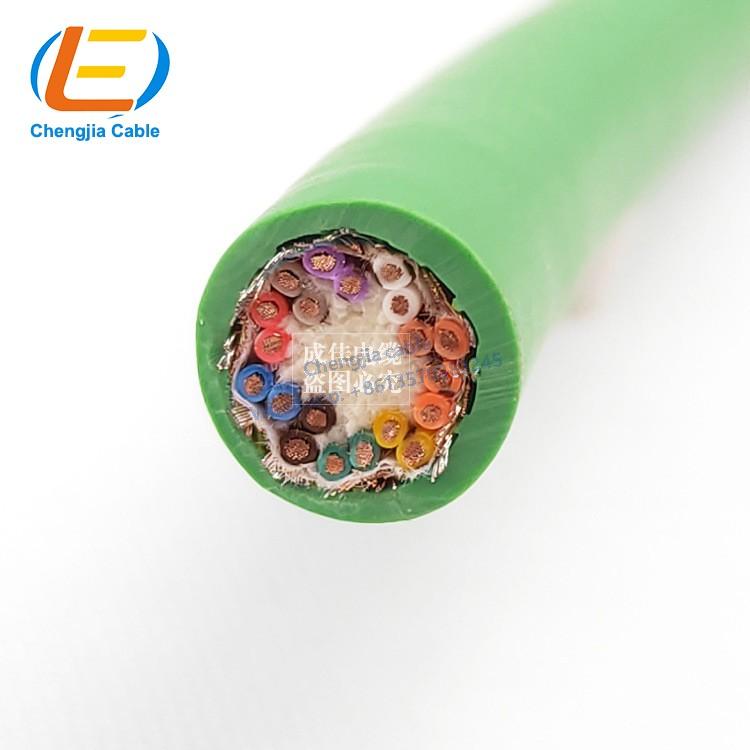

Control Cable Structure

1. Tinned copper (less than 0.5mm2) or bare copper (0.5mm2 and above) conductor thin copper wire, in line with DIN VDE0295 category 6 and IEC 60228 category 6

2. Special PVC insulation

3. Color core wire identification (less than 0.5mm2)

4. Black core wire with continuous white digital code (0.5mm2 and above)

5. The wire core is stranded in layers with the best pitch

6. Improved tinned copper wire braided shield

7. The minimum comprehensive shielding rate is 80%

8. Special PVC outer sheath

9. Black (RAL 9005) matte
