IO-HY06 Twisted Pair Flexible IO shielded Control Cable

Twisted pair flexible IO shielded control cable it is widely used in machinery, instruments, industrial electronic equipment, computers, information transmission systems, and is suitable for any two-way communication occasions.

EMAIL

Twisted Pair Cables shielded servo IO control drag chain cable terminal block link multi-core cable


Products Description

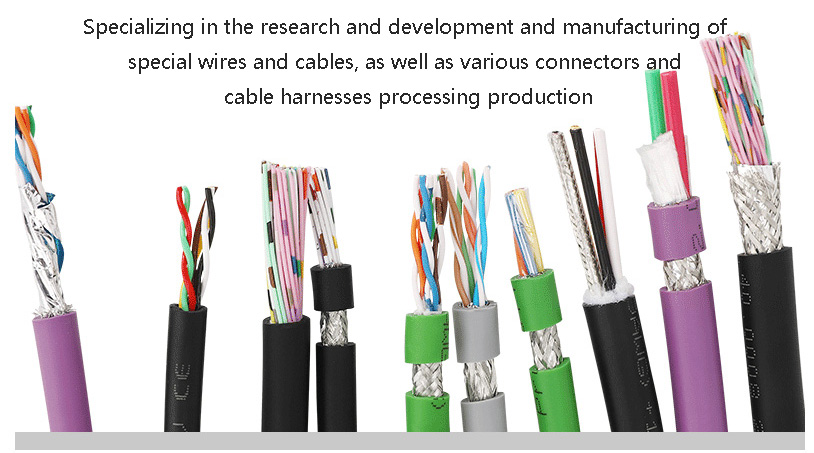

twisted pair io cables (3).jpg

Twisted pair flexible IO shielded control cable it is widely used in machinery, instruments, industrial electronic equipment, computers, information transmission systems, and is suitable for any two-way communication occasions.



Technical Parameter

Standard

Comply with UL20276 standard, thin wire diameter design

Minimum bending radius Fixed installation:

7.5x cable outer diameter

Temperature range

20~80 degrees

Oil resistance

Ordinary

Weather resistance

Not resistant to UV, suitable for indoor use

Conductor

Multiple strands of finely stranded oxygen-free copper wire

Insulation material

The core wire insulation is modified PE, and the outer cover is modified PVC

Core stranding

Twisted pair and composite total stranding

Core wire color:

Main color and square dot mark

Shielding density:

Tinned copper wire braid, shielding rate is over 85%

Outer jacket color:

Black, gray (need to be customized, 1000 meters minimum order)

Application:

Terminal block wiring, IO module wiring, wiring in various fields of machinery/automation production/control unit/console.

Cable Structure


1.Tinned copper conductor, thin copper wire meets UL20276 requirements

2.HDPE insulation

3.Color core wire identification

4.Wire cores are stranded in layers with the best pitch

5.Improved tinned copper wire braided shield

6.Minimum coverage 85%

7.Special PVC outer sheath

8.Black (RAL 9005) matte

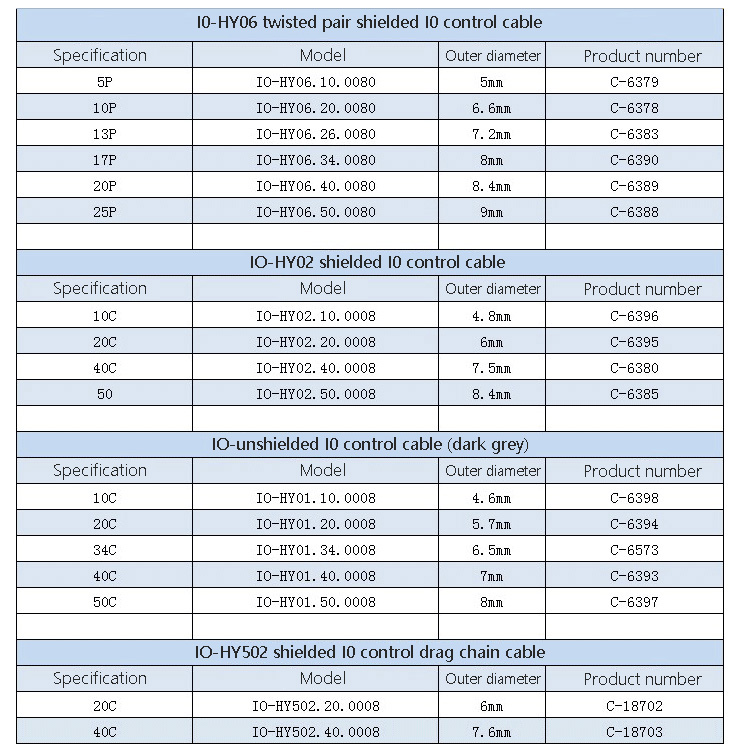

No.

Product Code

Cores Number and cross-sectional area

(NO.Xm㎡)

Approximate outer diameter (mm)

Outer sheath color

20℃  Conductor DC resistance

1

YO-YY06.50.0008

25x2x0.08

9.2

Black

239

2

YO-YY06.40.0008

20x2x0.08

8.4

Black

239

3

YO-YY02.50.0008

50x0.08

8.4

Black

239

4

YO-YY02.40.0008

40x0.08

7.5

Black

239

MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters

Company Profile

 Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.   Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C  Certifications and our factory successfully obtained ISO 9001:2000.

FAQ

Q  Are you a manufacturer or a trading company?

A  We are a manufacturer,we can control your order from the first beginning to the last.Welcome to visit us.We’ll pick you up in Guangzhou.

Q   What's your payment terms?

A   By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account. However, the terms can be negotiated according to quantity.Q  l didn't find my needed cable in the page.A  Dear Friend, If you don't find the cable you need, please contact us.

Q What 's your delivery time?

A  Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.Q  What is your MOQ?

A  Normally, 500 meters can be accepted. For special cable the minimum order quantity will be negotiated.

Q  How can l get a sample to check your quality?A  We are honored to offer you samples. Sample is free, you only need to pay for the shipment. Waiting for your cooperation.
