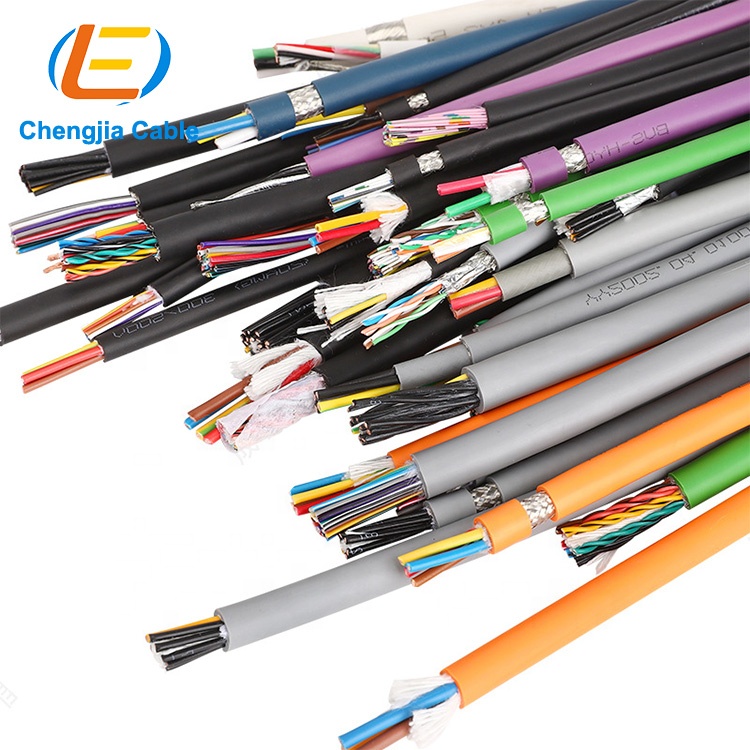

YY1002 Servo Power Drag Chain Cable Shielded Servo Feedback Torsion Cable

The servo power drag chain cable for servo system mainly refer to the mobile servo cable. It adopts the technology and material of the high-level towline cable. The cable integrates the signal transmission cable and the power connection cable, saves the installation space, reduces its own weight, and maintains the reliability and stability of the work.

EMAIL

YY1002 Servo Power Drag Chain Cable Shielded Servo Feedback Torsion Cable


Products Description


Servo power drag chain cable is especially suitable for continuous ultra-high flexibility and high-speed towline bending applications of mechanical equipment and machine tools.

Servo cables are mainly used in: industrial electronic systems, automatic generation of lines, equipment, robots, indoor cranes, packaging machinery, CNC machine tools and metallurgical industries.




Technical Parameter


Standard

Comply with EU RoHS and Reach regulations

Conductor

adopts high-quality tinned copper stranded copper wire

Insulation material

Special PVC sheath with high flexibility

Temperature range:

Mobile installation -5°C to +70°c

Fixed installation -15°C to +80°c

Insulation resistance:

Minimum 20 MOhm x km

Color

Black (other colors can be customized)

Minimum bending radius:

Mobile installation 7.5×cable diameter

Fixed installation 6x cable diameter

Nominal voltage

Uo/U 300/300 V

Test voltage

1500 V

Application:

Suitable for various non-standard automated production equipment such as CNC machine tools, industrial robots, servo drives,woodworking machinery, mask machines, manipulators, dispensing machines, laser equipment, stamping lines, logistics automation,ceramic production equipment, etc., which can withstand long-term acceleration, Deceleration, tensile and compressive stress, and high-speed periodic bending, and always maintain high stability.

Cable Structure

Servo Power Drag Chain Cable Structure

1. Tinned copper (less than 0.5mm2) or bare copper (0.5mm2 and above) conductor Ultra-fine copper wire, in line with DIN VDE0295 category 6 and IEC 60228 category 6

2. Special PVC insulation

3. Color core wire identification (less than 0.5mm2)

4. Black core wire, with continuous white digital code (0.5mm2 and above), yellow-green ground wire on the outer layer (3 core and above)

5. The wire core is stranded in layers with the best pitch

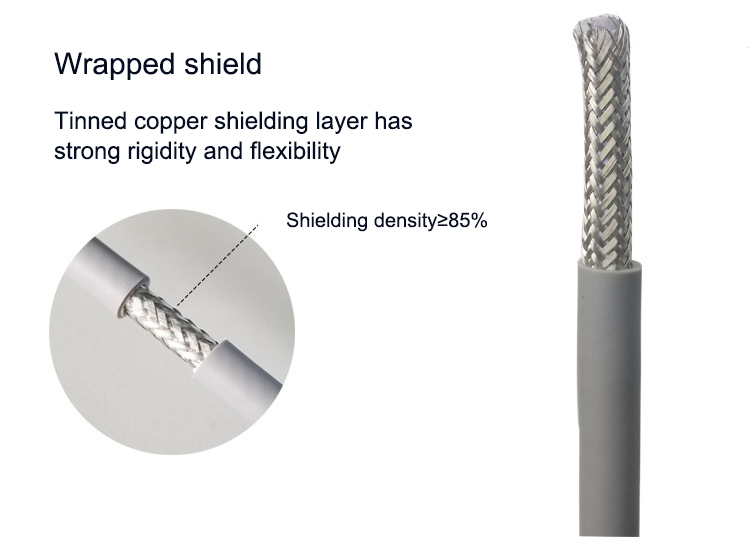

6. Improved tinned copper wire braided shield

7. Minimum coverage 85%

8. Special PVC outer sheath

9. Gray (RAL 7001) matte


No.

Product Code

Cores Number and cross-sectional area

(NO.Xm㎡)

Approximate outer diameter (mm)

Outer sheath color

20℃  Conductor DC resistance

Ω/km

1

YY1002.02.0020

2x0.2

4.5

Gray

95

2

YY1002.03.0020

3x0.2

4.8

Gray

95

3

YY1002.04.0020

4x0.2

5.4

Gray

95

4

YY1002.05.0020

5x0.2

5.6

Gray

95

5

YY1002.06.0020

6x0.2

6

Gray

95

6

YY1002.08.0020

8x0.2

6.8

Gray

95

7

YY1002.10.0020

10x0.2

7.5

Gray

95

8

YY1002.12.0020

12x0.2

7.2

Gray

95

9

YY1002.16.0020

16x0.2

7.8

Gray

95

10

YY1002.20.0020

20x0.2

8.4

Gray

95

11

YY1002.02.0030

2x0.3

4..8

Gray

71.2

12

YY1002.03.0030

3x0.3

5

Gray

71.2

13

YY1002.04.0030

4x0.3

5.6

Gray

71.2

14

YY1002.05.0030

5x0.3

6

Gray

71.2

15

YY1002.06.0030

6x0.3

6.2

Gray

71.2

16

YY1002.08.0030

8x0.3

7.2

Gray

71.2

17

YY1002.10.0030

10x0.3

8

Gray

71.2

18

YY1002.12.0030

12x0.3

7.8

Gray

71.2

19

YY1002.16.0030

16x0.3

8.4

Gray

71.2

20

YY1002.20.0030

20x0.3

9.2

Gray

71.2
