Trackless High Flex Cable For Clean Room Cable

Antistatic TRACKLESS HIGH FLEX Cable help prevent triboelectric charge and voltage build-up for better protection against ESD. This next-generation cable system uses a new non-carbon based material that reduces particle adsorption, prevents surface charge build-up and uncontrolled dust collection.

EMAIL

Trackless High Flex Cable For Clean Room Cable

Products Description

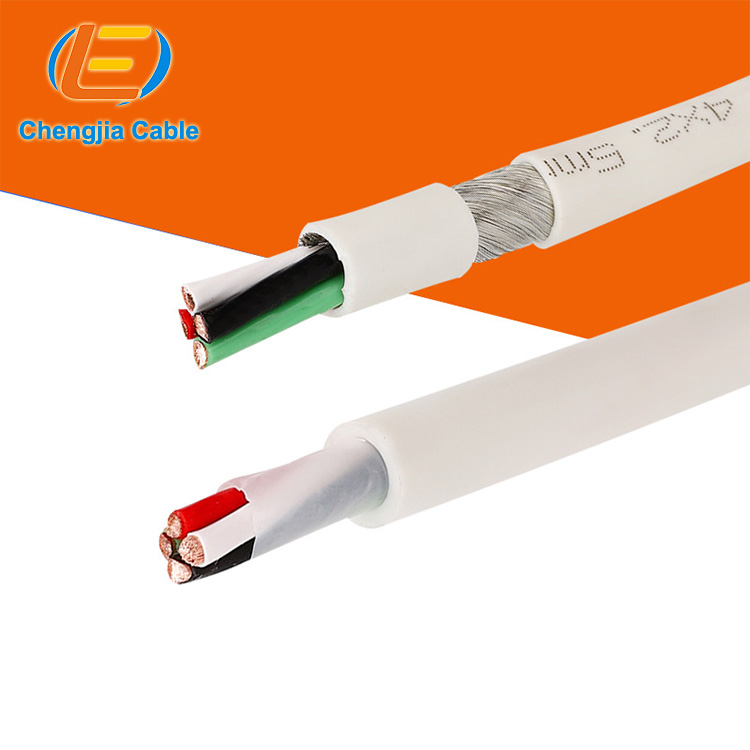

clean room cable (1).jpg

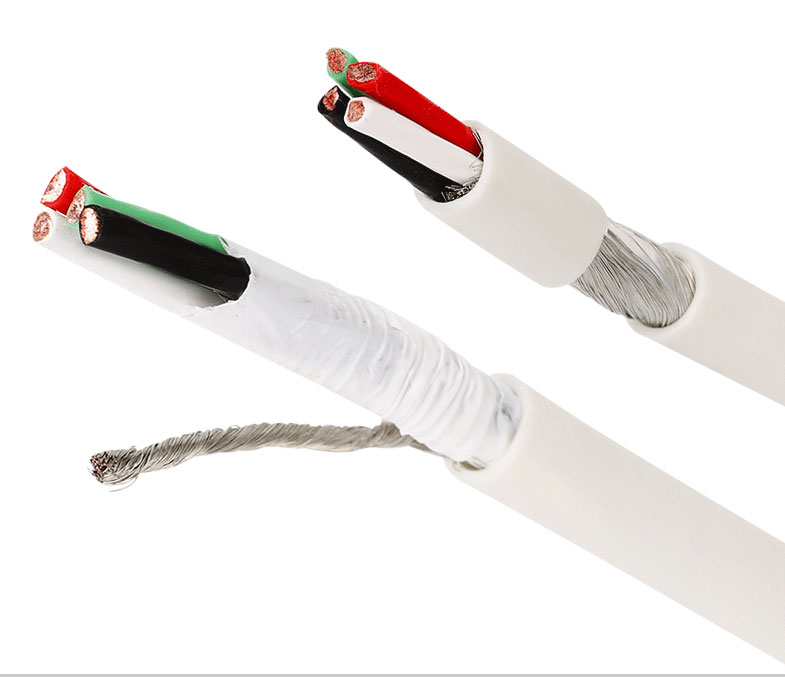

clean room cable (4).jpg

Chengjia self-supporting Trackless High Flex Cable For Clean Room Cable eliminate the need for a cable track or chain completely for a more simple cable management system. Our trackless cables solve many challenges associated with particulation, vibration, size and weight. They provide increased positioning accuracy, faster speeds, quieter motion, reliable installation and cleaner operation

Product Feature

Technical Parameter

Standard

Comply with EU RoHS and Reach regulations

Conductor

adopts high-quality tinned copper stranded copper wire

Insulation material

Expanded PTFE Composite

Temperature range:

Max.: 80 °C (176 °F)
Min.: -40 °C (-40 °F)

Maximum self-supporting stroke length [in (mm)]1

60 (1500)

Color

White

Advantage

Antistatic /Low dust collection /High flexible /Bending resistance

Nominal voltage

Uo/U 300/300 V

Minimum bend radius [in (mm)]

1.0 to 4.0 (25.0 to 101.0)

Cleanroom class (cleanroom class according to ISO 14644-1, 1,000,000 bending tests)b

Class 1

Cable Structure

Features & Benefits

Trackless High Flex Cables that make them more durable in demanding environments.

Features include:
* flat construction that is self-supporting with no dividers and shelves
* proven flex life greater than 10 million cycles at a minimum bend radius of 50 millimeters
* low-friction, chemically inert and non-particulating insulation materials
* certified for ISO Class 1 cleanroom and vacuum environments
* standard and custom configurations available with mounting clamps

Features & Benefits

Trackless High Flex Cables that make them more durable in demanding environments.


* flat construction that is self-supporting with no dividers and shelves
* proven flex life greater than 10 million cycles at a minimum bend radius of 50 millimeters
* low-friction, chemically inert and non-particulating insulation materials
* certified for ISO Class 1 cleanroom and vacuum environments
* standard and custom configurations available with mounting clamps

Trackless High Flex Cables provide manufacturers with many benefits that improve electrical and mechanical performance such as:
* reliable signal transmission in challenging environmental conditions
* no particulation and outgassing due to unique jacketing and shielding materials
* eliminates vibration caused by traditional cable chains and tracks
* easy installation due to lightweight, flexible cables with a tight bend radius
* reduced maintenance, downtime and total costs over equipment lifecycle from proven flex life
