YY1006 Bending Resistant Single Sheath Twisted Pair Double Shielded Servo Motor Cables

10 millionTwisted Pair Double Shielded Servo Motor Cables for high -speed exercise are used for high -flexible PVC cover cables for drag chain systems. Special PVC materials are usually used as insulating cover. Its main characteristics: very oil -resistant and coolant. , But not using and outdoor. The specially transformed PVC synthetic materials will have a long life. After strict testing, the cable can be continuously electrified, no short circuit, and the insulating sheath can not be damaged during the mobile bending test.

EMAIL

YY1006 Bending Resistant Single Sheath Twisted Pair Double Shielded Servo Motor Cables

10 million twisted pair shielded servo motor cables for high -speed exercise are used for high -flexible PVC cover cables for drag chain systems. Special PVC materials are usually used as insulating cover. Its main characteristics: very oil -resistant and coolant. , But not using and outdoor. The specially transformed PVC synthetic materials will have a long life. After strict testing, the cable can be continuously electrified, no short circuit, and the insulating sheath can not be damaged during the mobile bending test.

Product Feature

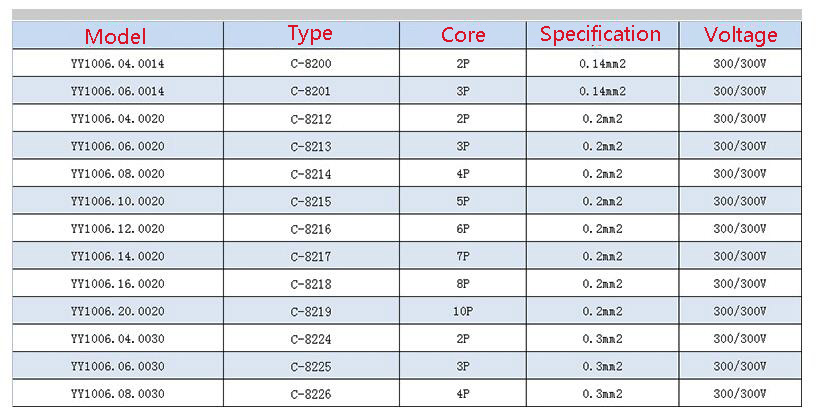

Technical Parameter

Standard

Comply with UL20276 standard, thin wire diameter design

Conductor

adopts high-quality tinned copper stranded copper wire

Insulation material

Modified PVC

Core structure

Small pitch single stranding

Core recognition

Below 0.5m㎡ is marked with colored core wires; 0.5m㎡ above, a yellow-green ground wire + black core wire with white numbers

Outer sheath

Modified PVC mate

Color

black (other colors can be customized)

Bending radius

Move in  is more than 7.5 x d,

Fixed laying is more than 6 x d,

Nominal voltage

Uo/U 300/300 V

Test voltage

1500 V

Application:

Widely used in machinery, instruments, industrial electronic equipment computers, information transmission systems, suitable for any two-way communication occasions



Twisted Pair Shielded Servo Motor Cables Structure

1. Tinned copper (less than 0.5mm2) or bare copper (0.5mm2 and above) conductor Ultra-fine copper wire, in line with DIN VDE0295 category 6 and IEC 60228 category 6

2. Special PVC insulation

3. Color core wire identification (less than 0.5mm2)

4. Black core wire with continuous white digital code (0.5mm2 and above)

5. The wire core is stranded in layers with the best pitch

6. Improved tinned copper wire braided shield

7. Minimum coverage 85%

8. Special PVC outer sheath

9. Green (RAL 6018) matte
