YY07 UL20549 26AWG 300V HIGH FLEXIBIL Machine Flexible Power Control Cable Electrical Cord Tinned Copper 3 Core RVVP Flexible Power Cable

YY07 UL20549 26AWG 300V HIGH FLEXIBIL Machine Flexible Power Control Cable Electrical Cord Tinned Copper 3 Core RVVP Flexible Power Cable

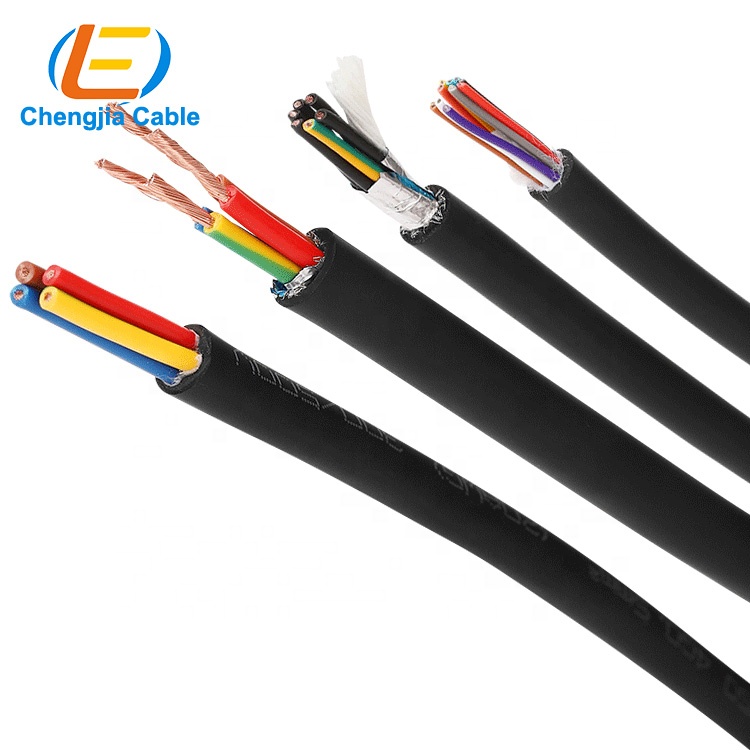

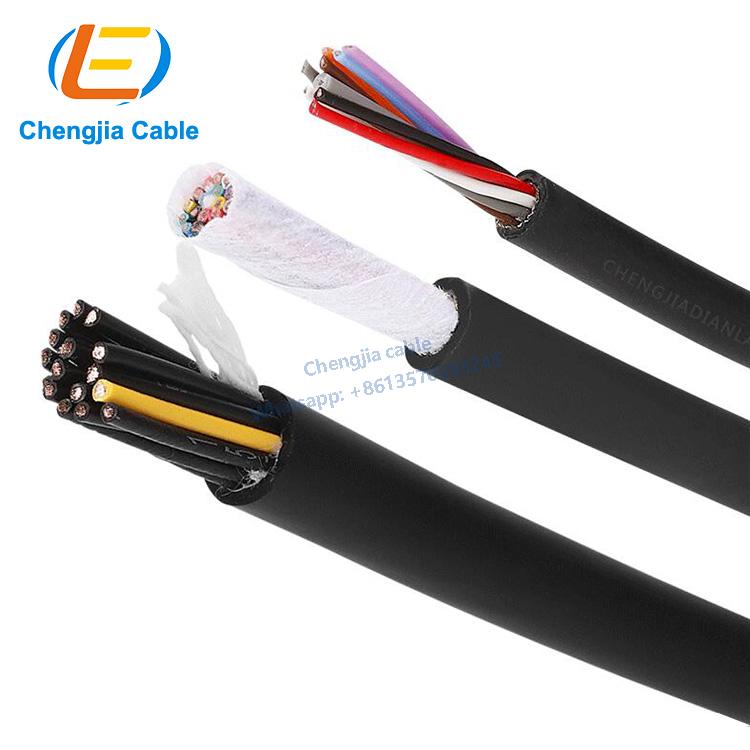

RVVP Flexible Cable are mainly used as control and power transmission systems, which are widely used in sensing technology, computers and equipment control equipment and control engineering; three cores and three cores have green/yellow protection grounding wires, core wire twisted cable twisted festivals Short distance, the overall copper shield is shielded to ensure accurate data transmission and protect the cable from electromagnetic exemption.
The color of the outer cover is: black, you can choose other colors as needed.

YY07 UL20549 26AWG 300V HIGH FLEXIBIL Machine Flexible Power Control Cable Electrical Cord Tinned Copper 3 Core RVVP Flexible Cable

Low -speed flexible Power Cable are mainly used as control and power transmission systems, which are widely used in sensing technology, computers and equipment control equipment and control engineering; three cores and three cores have green/yellow protection grounding wires, and core wire twisted cable twisted collisions Short -distance. The color of the outer cover is: black, you can choose other colors as needed.

Product Feature

Technical Parameter

Standard		Comply with UL20276 standard, thin wire diameter design
Conductor		adopts high-quality tinned copper stranded copper wire
Insulation material		Modified PVC
Core structure		Small pitch single stranding
Core recognition		Color core
Outer sheath		Modified PVC mate
Color		black (other colors can be customized)
Bending radius		Mobile installation 7.5×cable diameter Fixed installation 6x cable diameter
Nominal voltage		Uo/U 300/500 V
Test voltage		2000 V
Application:		It can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servers/motors, drag chain systems and other fields.

Cable Structure

Flexible Power Cable Structure

1. Bare copper conductor, thin copper wire Complies with DIN VDE 0295 category 6 and IEC 60228 category 6

2. Special PVC insulation

3. Color core wire identification

4. The wire core is stranded in layers with the best pitch

5. With yellow and green grounding wire (3 cores and above)

6. Special PVC outer sheath 7. Black (RAL 9005) matte

No.	Product Code	Cores Number and cross-sectional area (NO.Xm㎡)	Approximate outer diameter （mm)	Outer sheath color	20℃ Conductor DC resistance Ω/km
1	YY07.02.0050	2x0.5	5.6	Black	39
2	YY07.03.0050	3G0.5	6	Black	39
3	YY07.04.0050	4G0.5	6.5	Black	39
4	YY07.02.0075	2x0.75	6	Black	26
5	YY07.03.0075	3G0.75	6.5	Black	26
6	YY07.04.0075	3G0.75	7.2	Black	26
7	YY07.02.0100	2X1.0	6.4	Black	19.5
8	YY07.03.0100	3G1.0	6.9	Black	19.5
9	YY07.04.0100	4G1.0	7.8	Black	19.5
10	YY07.02.0150	2x1.5	7.5	Black	13.3
11	YY07.03.0150	3G1.5	8.2	Black	13.3
12	YY07.04.0150	4G1.5	9	Black	13.3
13	YY07.02.0250	2x2.5	9	Black	7.98
14	YY07.03.0250	3G2.5	9.8	Black	7.98
15	YY07.04.0250	4G2.5	11	Black	7.98
16	YY07.04.00400	4G4.0	12.8	Black	4.95
17	YY07.04.0600	4G6.0	14.4	Black	3.3
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters

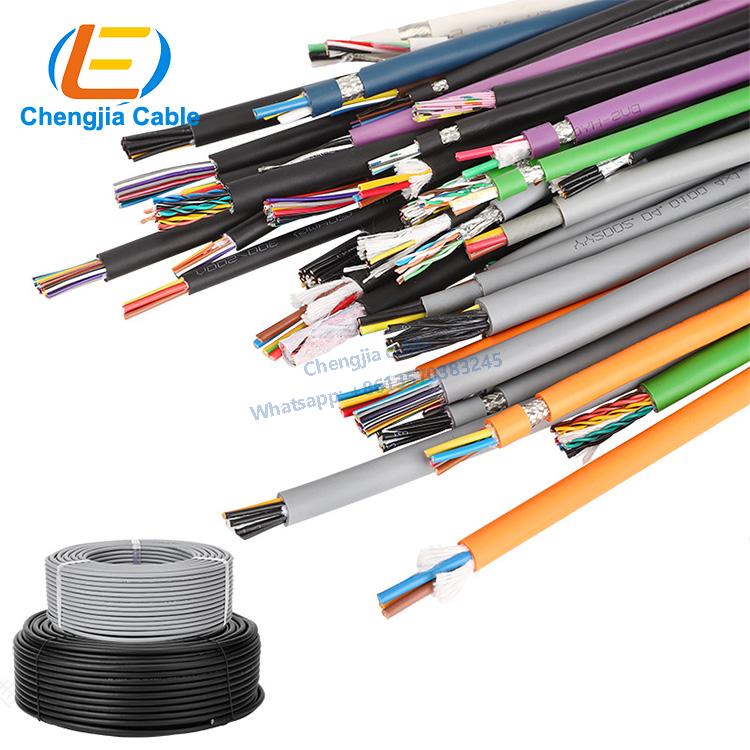

One-stop procurement service provider:

complete varieties of ordinary, highly flexible, and ultra-high flexible cables

1. Flexible service robot cable: drag chain 50 million times, 3D torsion more than 20 million times;

2. Industrial robot body cable: 3D torsion 20 million times, 50 million times can be customized;

3. Special cable for linear motor: drag chain 50 million times, 100 million times can be ordered;

4. Ultra-high-speed drag chain cable: drag chain 20 million times, refer to German standard, full extrusion hard wire technology;

5. Ultra-high flexible drag chain cable: drag chain 10 million times, refer to Japanese standards, semi-extrusion flexible cord technology;

6. Highly flexible towline cable: 5~8 million times, refer to Japanese standards, semi-extrusion flexible cord technology;

7. Industrial flexible cable: 2 million low-speed movements, electrical cabinet, servo encoder, IO control wiring;

8. Data bus cable: CC-Link, DeviceNet, Profibus, Cat5e/6a Ethernet cable, etc.;

9. Medical cables: industrial endoscopes, B-ultrasound, medical lifting tables, imaging equipment, sensors, surgical robot cables, etc.;

10. In addition, precision sensor cables can be customized, as well as various high-demand, ultra-fine, chemical-resistant, and high-temperature-resistant special cables.

Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions. Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
