YY502 Flexible Shielded Control Cable Screened Flexible PVC Control Cable With Color Cores The characteristics of flexibility, bending resistance, wear resistance, oil resistance, folding resistance, flame retardant, corrosion resistance (complex chemical environment such as weak acid and alkali resistance) make the advantages of the cable in industrial sites such as drag chain systems to be maximized

EMAIL

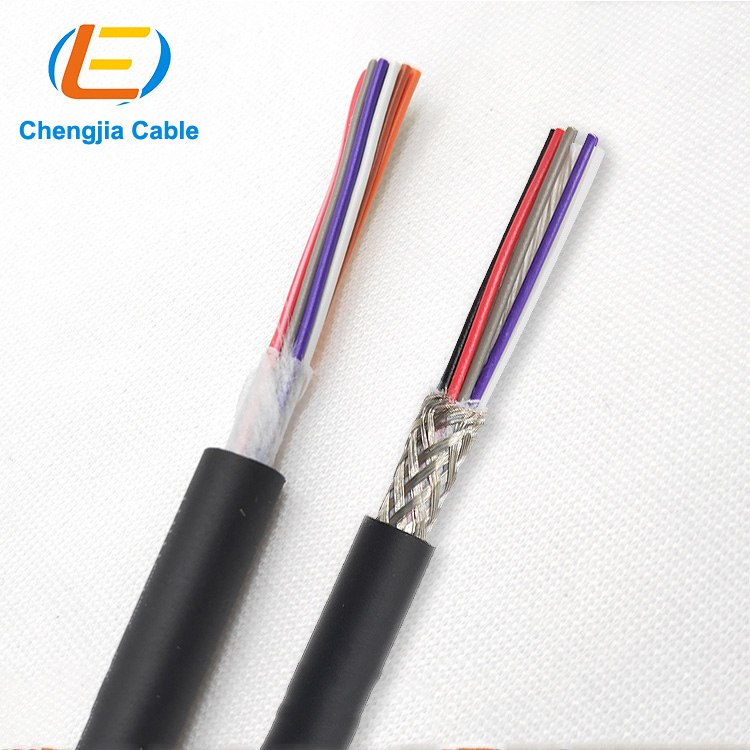

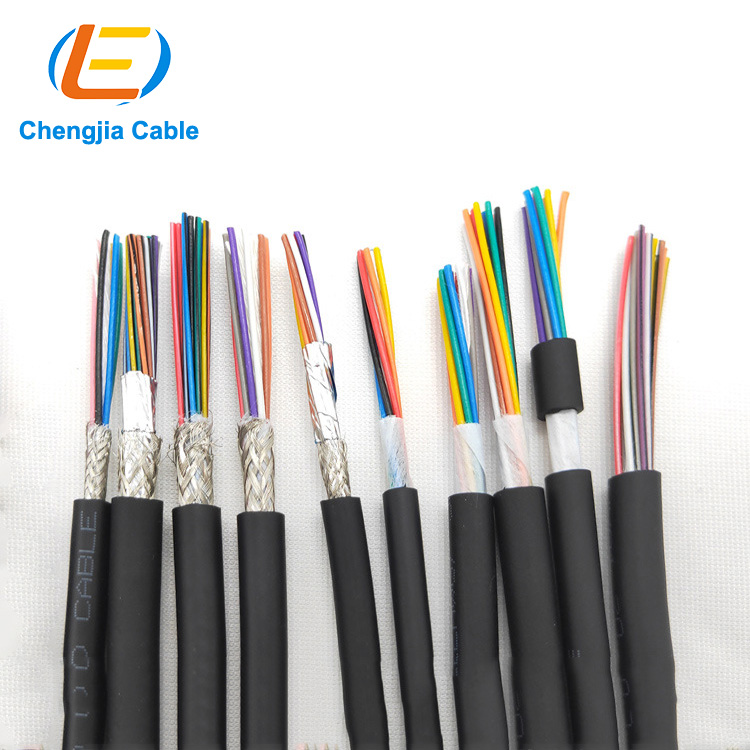

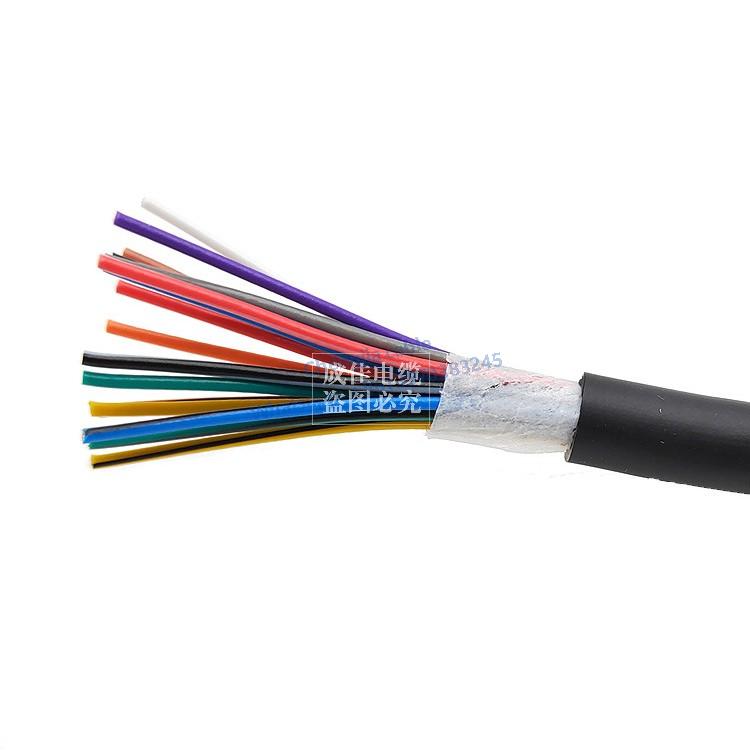

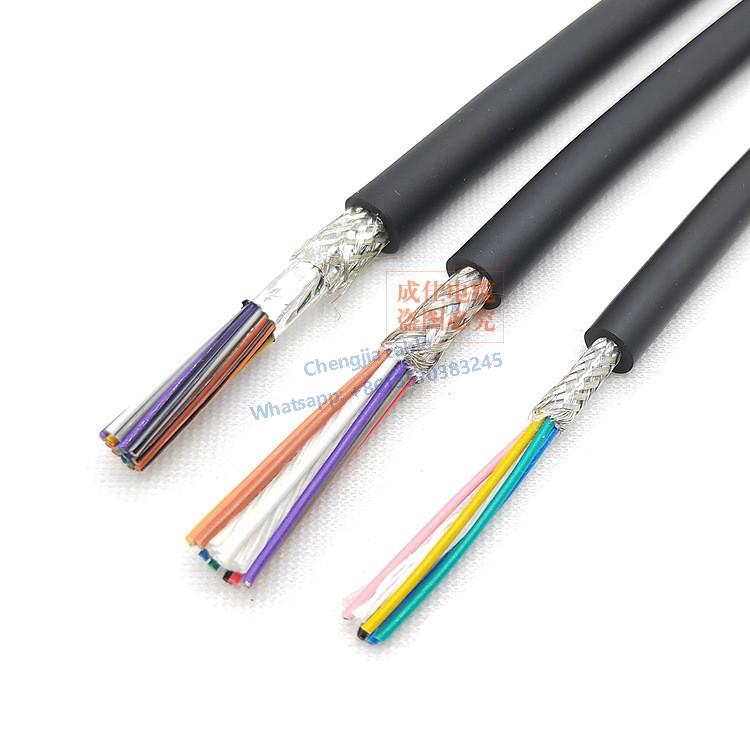

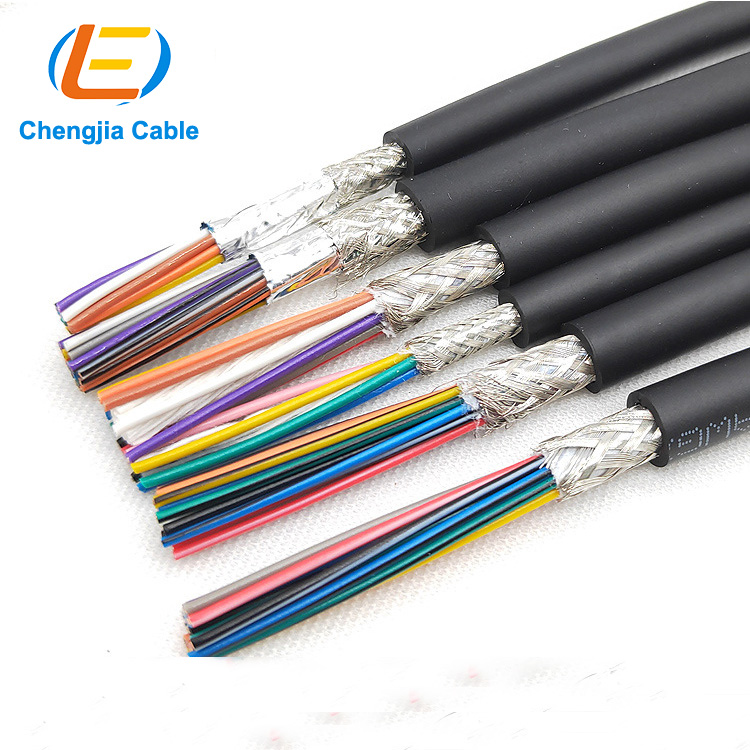

YY502 Flexible Shielded Control Cable Screened Flexible PVC Control Cable With Color Cores



YY502 Flexible Shielded Control Cable Screened Flexible PVC Control Cable With Color Cores is suitable for installation under continuous reciprocating motion, especially the frequent bending occasions under the industrial environment, the drag chain of modern machinery standard components and the logistics system, operating system, mechanical automation system and other CNC machine tools, electronic equipment, metal stamping, wood and stone Machinery, glass and door and window machinery, injection molding machines, manipulators, robots, construction machinery, heavy machinery factories, automobile manufacturing, lifting and transportation equipment, automated warehouses, docks, fire trucks and other indoor and outdoor environments

Product Feature

YY502 Flexible Shielded Control Cable Screened Flexible PVC Control Cable With Color Cores Technical Parameter

Standard

Comply with EU RoHS and Reach regulations

Conductor

adopts high-quality tinned copper stranded copper wire

Insulation material

Special PVC sheath with high flexibility

Temperature range:

Mobile installation -5°C to +70°c

Fixed installation -15°C to +80°c

Insulation resistance:

Minimum 20 MOhm x km

Color

Black (other colors can be customized)

Minimum bending radius:

Mobile installation 7.5×cable diameter

Fixed installation 6x cable diameter

Nominal voltage

Uo/U 300/300 V

Test voltage

1500 V

Application:

Suitable for various non-standard automated production equipment such as CNC machine tools, industrial robots, servo drives,
woodworking machinery, mask machines, manipulators, dispensing machines, laser equipment, stamping lines, logistics automation,
ceramic production equipment, etc., which can withstand long-term acceleration, Deceleration, tensile and compressive stress, and
high-speed periodic bending, and always maintain high stability.

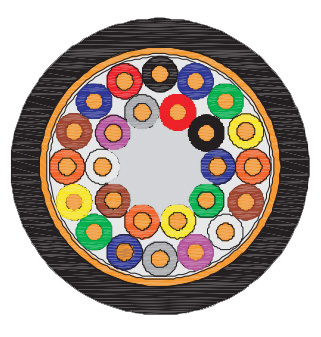

YY502 Flexible Shielded Control Cable Screened Flexible PVC Control Cable With Color Cores Structure

YY502 Flexible Shielded Control Cable Screened Flexible PVC Control Cable With Color Cores Structure

1. Tinned copper (less than 0.5m㎡) or bare copper (0.5m㎡ and above) conductor thin copper wire, in line with DIN VDE 0295 category 6 and IEC60228 Class 6

2. Special PVC insulation

3. Color core wire identification (less than 0.5m㎡)

4. Black core wire, with continuous white digital code (0.5m㎡ and above), yellow-green ground wire on the outer layer (3 core and above)

5. The wire core is stranded in layers with the best pitch

6. Improved tinned copper wire braided shield

7. The minimum coverage rate is 80%

8. Special PVC outer sheath

9. Black (RAL 9005) matte


INQUIRY

No.

Product Code

Cores Number and cross-sectional area

(NO.Xm㎡)

Approximate outer diameter (mm)

Outer sheath color

20℃  Conductor DC resistance

Ω/km

1

YY502.02.0020

2x0.2

4.4

Black

95

2

YY502.03.0020

3x0.2

4.6

Black

95

3

YY502.04.0020

4x0.2

4.9

Black

95

4

YY502.05.0020

5x0.2

5.2

Black

95

5

YY502.06.0020

6x0.2

5.6

Black

95

6

YY502.08.0020

8x0.2

6.5

Black

95

7

YY502.10.0020

10x0.2

7.4

Black

95

8

YY502.12.0020

12x0.2

7.0

Black

95

9

YY502.16.0020

16x0.2

7.8

Black

95

10

YY502.20.0020

20x0.2

8.5

Black

95

11

YY502.02.0030

2x0.3

4.6

Black

71.2

12

YY502.03.0030

3x0.3

4.8

Black

71.2

13

YY502.04.0030

4x0.3

5.2

Black

71.2

14

YY502.05.0030

5x0.3

5.5

Black

71.2

15

YY502.06.0030

6x0.3

5.8

Black

71.2

16

YY502.08.0030

8x0.3
