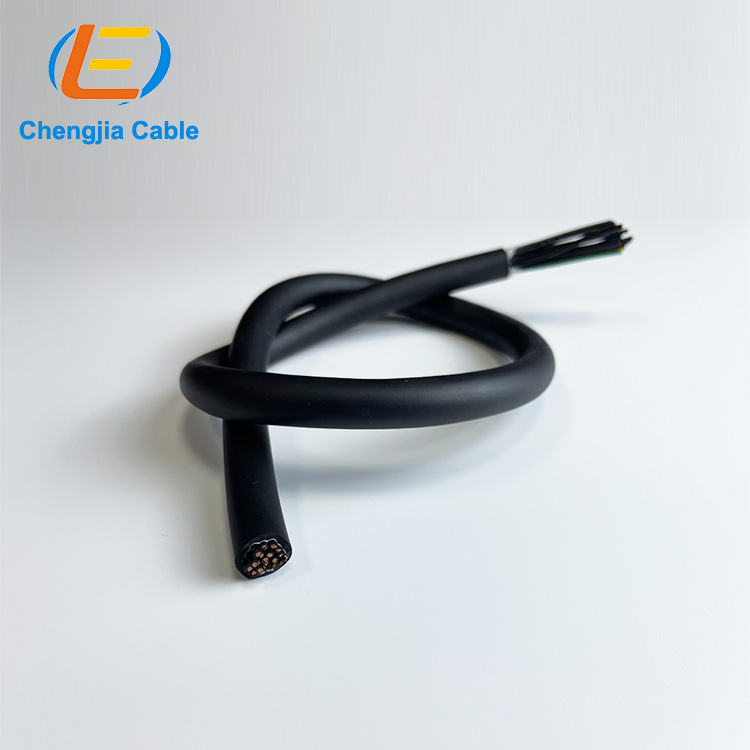

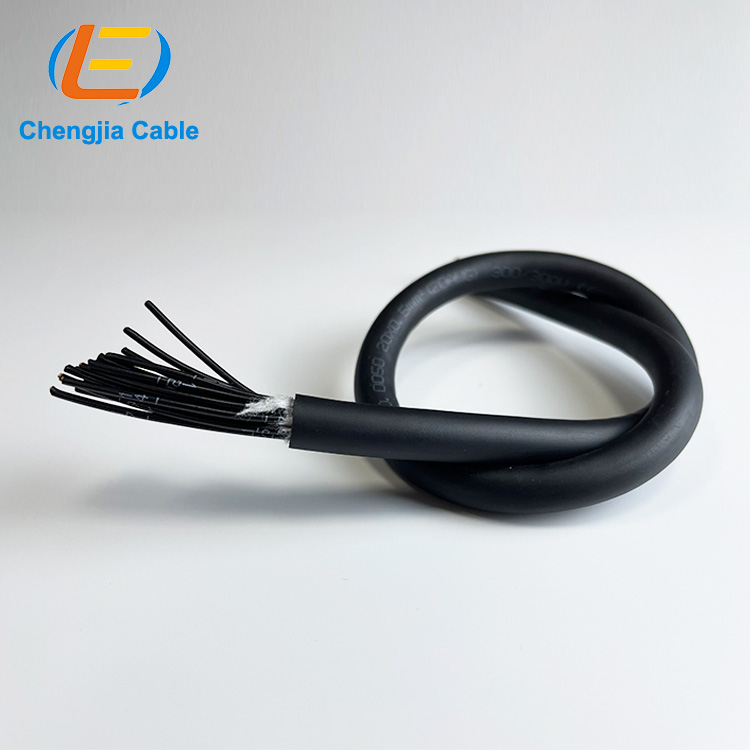

YY01 Flexible Multi-Conductor Control Cable PVC Insulated Multicore(Black Cores)

YY01 Flexible Control Cables are used to relay the required signal/action from the operator to the specific control point.

EMAIL

Products Description


YY01 Flexible Multi-Conductor Control Cable PVC Insulated Multicore(Black Cores) are used for electrical connection in industrial automation, complete sets of electromechanical equipment, machine tools and other mechanical equipment, logistics transmission systems, production lines and other control systems. They are especially suitable for fixed installations in industrial environments, dry or humid indoors, and can also be used for non- Mobile installation with continuous reciprocating motion without forced traction. The black outer sheath has anti-ultraviolet properties and can be installed outdoors in the open, but direct burial is not allowed. The cable has good flexibility. The sheath is made of oil-resistant PVC, so that the cable has good oil resistance.

Product Feature

Technical Parameter

Standard

Comply with UL20276 standard, thin wire diameter design

Conductor

adopts high-quality tinned copper stranded copper wire

Insulation material

Modified PVC

Core structure

Small pitch single stranding

Core recognition

Black core with continuous white number code

Outer sheath

Modified PVC mate

Color

black (other colors can be customized)

Bending radius

Move in drag chain is more than 7.5 x d,

non-tow chain is moved more than 6 x d,

fixed laying is more than 5 x d

Movement speed:

fixed or low-speed movement, less than 0.3 m/s

Travel distance

Fixedly laid, less than 30 meters, and the signal is attenuated if it is too long.

Nominal voltage

Uo/U 300/300 V

Test voltage

1500 V

Application:

Suitable for various non-standard automated production equipment such as CNC machine tools, industrial robots, servo drives,
woodworking machinery, mask machines, manipulators, dispensing machines, laser equipment, stamping lines, logistics automation,
ceramic production equipment, etc., which can withstand long-term acceleration, Deceleration, tensile and compressive stress, and
high-speed periodic bending, and always maintain high stability.

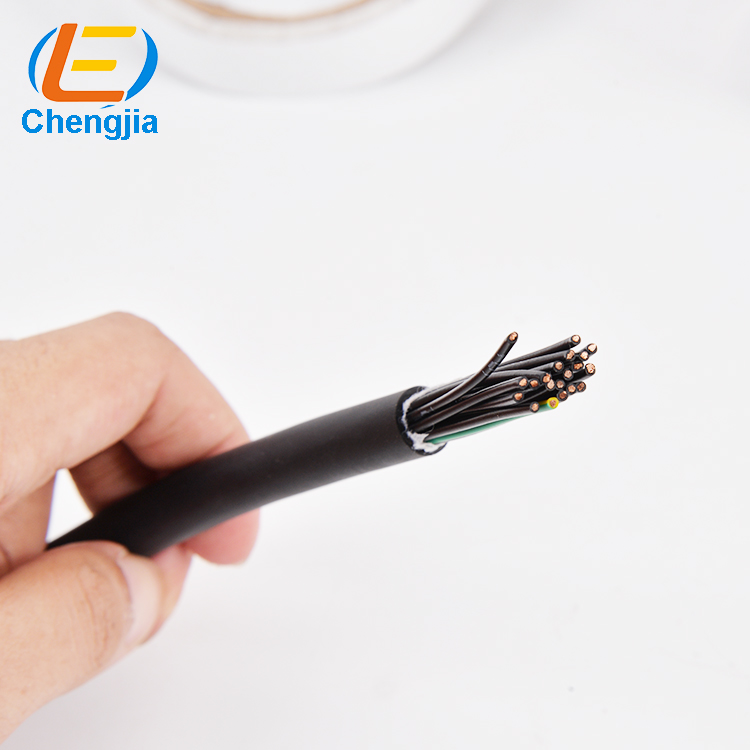

Cable Structure

Control Cable Structure

1.Bare copper conductor, thin copper wire

2.Conforms to DIN VDE0295 category 6 and IEC 60228 category 6 Special PVC insulation

3.Black core wire with continuous white digital code

4.The yellow-green ground wire is stranded in layers with the best pitch on the outer layer (3 cores and above)

5.Special PVC outer sheath

6.Black (RAL 9005) matte


No.

Product Code

Cores Number and cross-sectional area

(NO.Xm㎡)

Approximate outer diameter (mm)

Outer sheath color

20℃  Conductor DC resistance

Ω/km

1

YY01.06.0050

6x0.5

.6.6

Black

39

2

YY01.08.0050

8x0.5

7.0

Black

39

3

YY01.10.0050

10x0.5

8.4

Black

39

4

YY01.12.0050

12x0.5

8.6

Black

39

5

YY01.16.0050

16x0.5

9.4

Black

39

6

YY01.06.0075

20x0.5

10.0

Black

39

7

YY01.08.0075

6x0.75

7.5

Black

26

8

YY01.08.0075

8x0.75

8.2

Black

26

9

YY01.10.0075

10x0.75

9.5

Black

26

MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters
