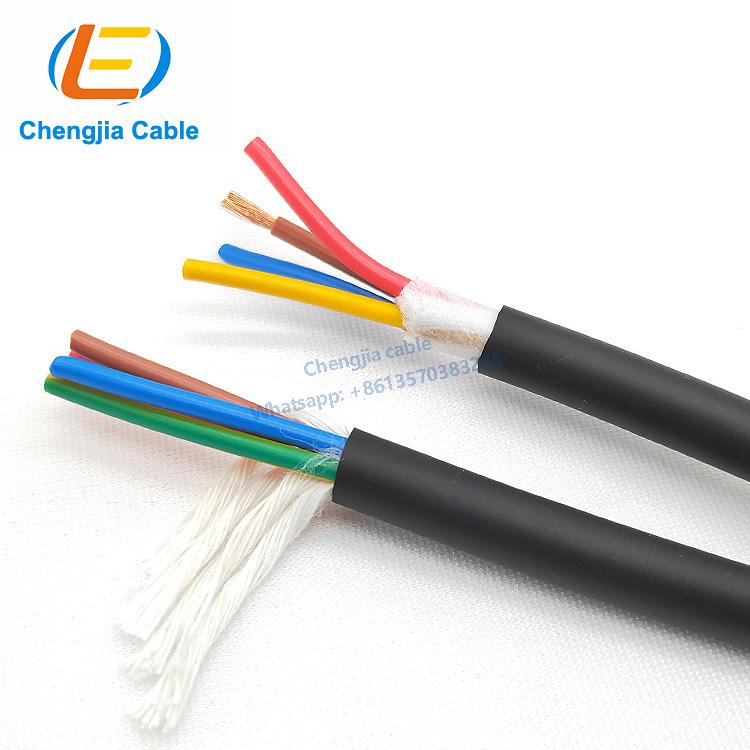

YY07 PVC Flexible Portable Cords Monitor Power Cable

2 million times low-speed PVC flexible portable cords monitor power cableare mainly used for control and power transmission systems. They are widely used in sensing technology, computer and instrument control equipment and control engineering. Three cores and more have green/yellow protective grounding conductors, and the core wires are twisted together. The cable stranding pitch is short, and the overall copper wire shielding ensures accurate data transmission and protects the cable from electromagnetic interference.

YY07 PVC Flexible Portable Cords Monitor Power Cable Technical Data

●Special PVC sheath with good flexibility

●Temperature range:

Mobile installation -5°C to +70° c

Fixed installation -15°C to +70° c

●Nominal voltage Uo/U 300/300 v

●Test voltage 2000 v

●Insulation resistance:

Minimum 20 MOhm x km

●Minimum bending radius:

Mobile installation 7.5×cable diameter

Fixed installation 6x cable diameter

●Comply with EU RoHS and Reach regulations

Structure Of PVC Flexible Portable Cords Monitor Power Cable

1. Bare copper conductor, thin copper wire

2. Comply with DIN VDE 0295 category 6 and IEC 60228 category 6

3. Special PVC insulation

4. Color core wire identification

5. The wire core adopts the best pitch stratified stranded with yellow-green grounding wire (3 cores and above)

6. Special PVC outer sheath

7. Black (RAL 9005) matte

Note: For PVC cables with MOQ of 1 meter , if the PUR sheath type is required, the MOQ is 400 meters.
